new board production using photo tranfer , chemical etching and surface mount components

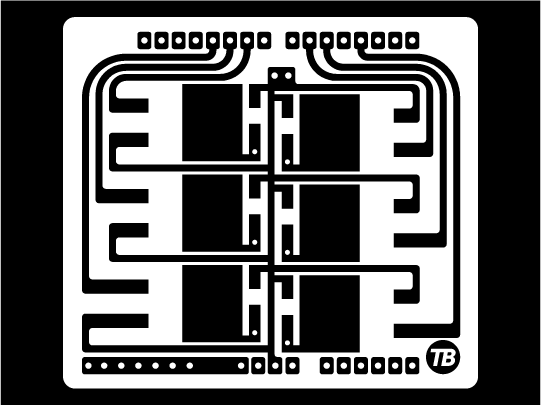

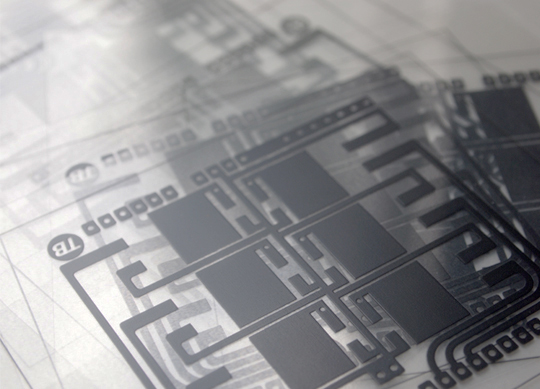

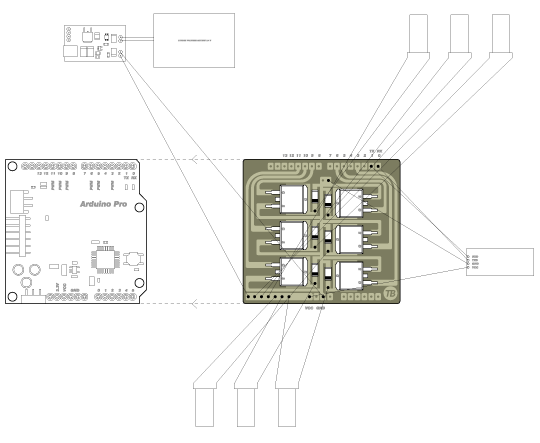

Close to the body studio Epilogue. Customization and size reduction of the electronic board. A production of a new board which is going to be placed on the top of the Arduino Pro microcontroller. Final board was manufactured using the photo transfer on a copper board with a photo-sensitive film.

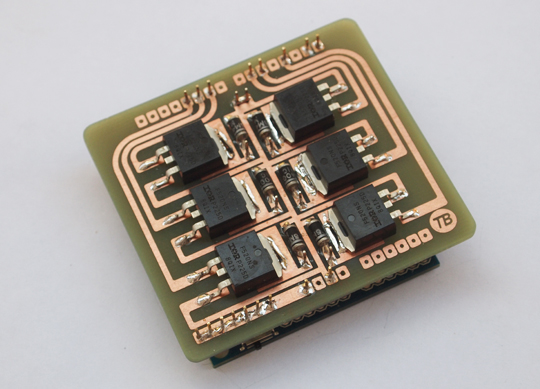

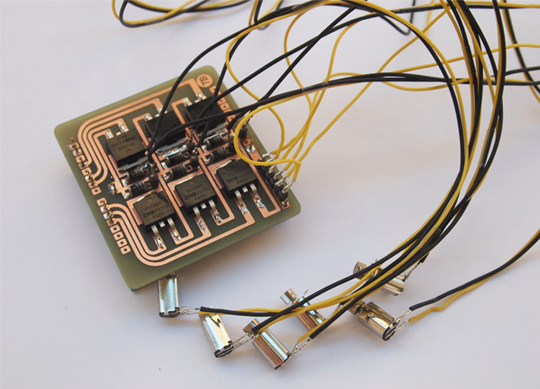

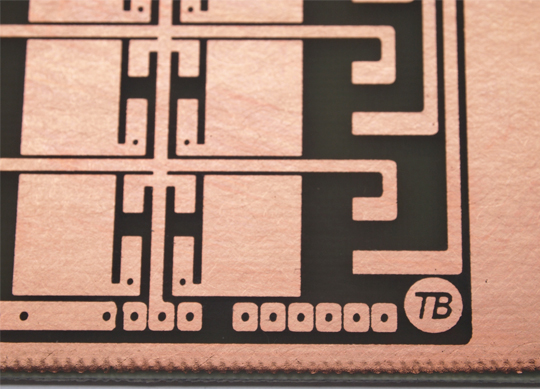

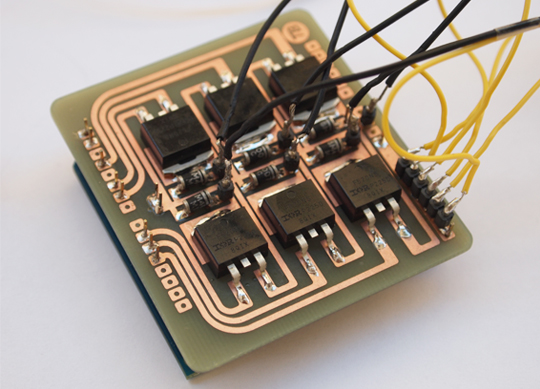

Traces were then developed in a plastic container with positive developer. Traces were then etched in a Ferric Chloride solution. Final board contains six mosfet transistors IRF 520N in D2Pak packages and six diodes in smd packages for surface mount technology.
